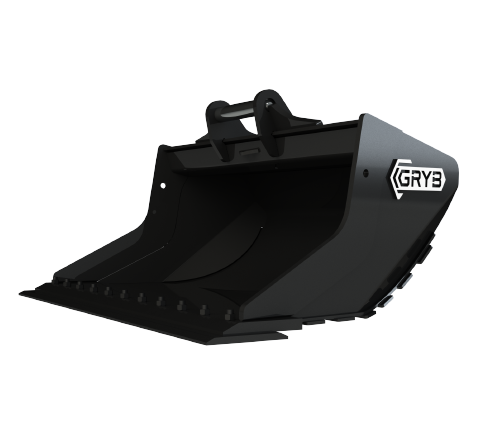

Grading Bucket
Excavator Grading Buckets
This grading bucket with minimized corners is a powerful all-around tool and the perfect attachment for your excavator. Designed for optimal use with our GTR Tiltrotators, our symmetrical grading buckets with minimized corners and rounded back design allow the material to release and fill easier without clogging during digging.
- Minimized corners that provide a better clearance during the tiltrotator's rotation.
- Optimized material selection to lower weight without compromising durability.
- Available with a bolt-on cutting edge.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (in) |
Volume (Yd³) |
|---|---|---|---|---|
| GEF120-60E-S60 | 10 to 15 | 1140 | 60 | 0.75 |
| GEF120-66F-S60 | 10 to 15 | 1245 | 66 | 0.85 |
| GEF120-96G-S60 | 10 to 15 | 1635 | 96 | 1.32 |
| GEF160-60F-S60 | 16 to 19 | 1340 | 60 | 1 |
| GEF160-66G-S60 | 16 to 19 | 1465 | 66 | 1.15 |
| GEF200-48F-S70 | 20 to 23 | 1370 | 48 | 0.9 |
| GEF200-66G-S70 | 20 to 23 | 1820 | 66 | 1.35 |
| GEF200-72G-S70 | 20 to 23 | 1995 | 72 | 1.5 |
| GEF200-96I-S70 | 20 to 23 | 2450 | 96 | 2.1 |
| GEF270-72H-S70 | 24 to 29 | 2445 | 72 | 1.8 |
| GEF270-78H-S70 | 24 to 29 | 2640 | 78 | 2 |
All types of excavators.
- Only available with symmetrical lugs.
- Bolt-on cutting edge
