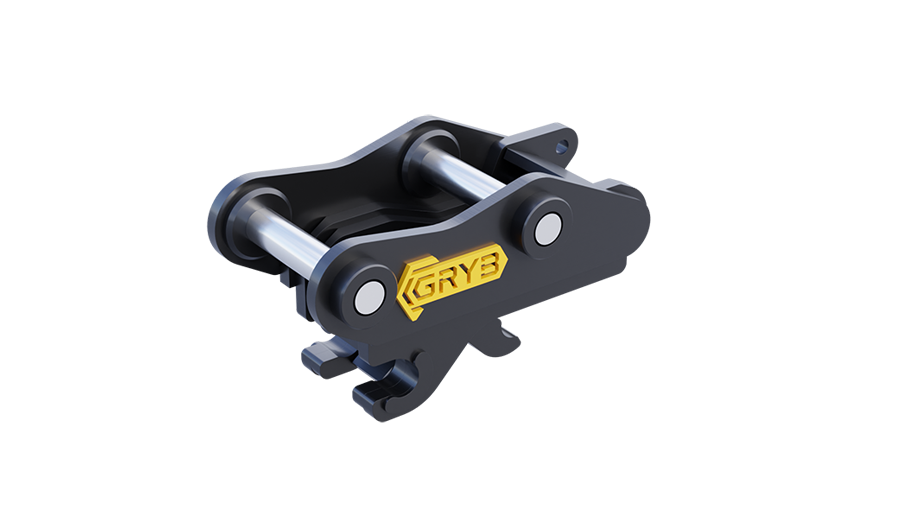

PIN GRABBER QUICK COUPLER
Our hydraulic pin grabber quick coupler is made of heavy-duty steel and is equipped with a dual safety system in case of hydraulic failure. With the sliding jaw design, the GRYB pin grabber quick coupler can fit into multiple pin centers, allowing it to grab various OEM attachments with ease.
- Dual safety system.
- Compatible with multiple types of attachments.
- Maximizes the efficiency of your attachments.
- Available for excavators from 10 to 85 tons.
Product Specifications
From the cab, you can visually see when the front safety is locked in place, thus ensuring the bucket won't fall. This is done by the cylinder moving on top of the front pin. Before the operator can disconnect, the GRYB hydraulic pin grabber quick coupler requires the system pressure against the integrated lock valve. This feature reduces the likelihood of releasing your attachment unexpectedly because of the full-system pressure requirement before hydraulic oil flows to the pin grabber quick coupler's cylinder. The upgraded two-stage control protects the operator from bumping the wrong switch in the cab. The in-cab control features two buttons: the first requires the operator to press and hold down for two seconds, then at the same time, press the second button. This reverses the hydraulic flow to release the attachment.
|
Model |
Category |
Machine Weight (tons) |
Weight (lb) |
Front Pin Diameter (mm) |
Locking Type |
Locking System |
|---|---|---|---|---|---|---|
| PGH060 | 120 | 10 to 15 | 490 | 60 | Sliding jaw | Hydraulic |
| PGH065 | 120 | 10 to 15 | 485 | 65 | Sliding jaw | Hydraulic |
| PGH070 | 160 | 16 to 19 | 675 | 70 | Sliding jaw | Hydraulic |
| PGH080 | 160 to 270 | 16 to 29 | 810 | 80 | Sliding jaw | Hydraulic |
| PGH090 | 270 to 300 | 24 to 39 | 1240 | 90 | Sliding jaw | Hydraulic |
| PGH100 | 300 to 400 | 30 to 49 | 1435 | 100 | Sliding jaw | Hydraulic |
| PGH110 | 400 | 40 to 49 | 1620 | 110 | Sliding jaw | Hydraulic |
Crawler and wheel excavators from 10 to 85 tons.
