GRYB DETAILS SHEET

Screening bucket

GT SERIES


ExcavatricesChargeuses


2 Years Warranty
SHARE

Ask a quote
  • Godet tamiseur
  • Godet tamiseur
  • Godet tamiseur
  • Godet tamiseur
  • Godet tamiseur
  • Godet tamiseur
  • Godet tamiseur

Pros

  • Sturdy enough for all kinds of work (decontamination, rock, recycling of various materials)

  • Reduce operation costs

  • Screen on the work site with one machine and one operator

  • Reversible hydraulic wheel motor - adjustable from 12 to 34 RPM

TECHNICAL SPECIFICATIONS

General overview

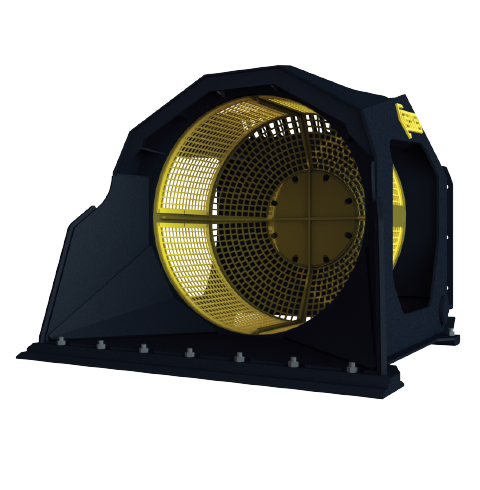

Screening bucket

Here is our full range of screening BUCKETS for excavators from 3.5 to 65 tonnes. 7 different models are available depending on the technical specifications of your machine. Refer to the table in the brochure to compare the models available and to select the most suitable one for your needs. To ensure product quality, our screen buckets are subject to many heavy-duty studies to make them lighter without losing any resistance.

Warranty 2 years

Features

Performance

Performance varies according to different sizes of screeners, which are available in 4 standard sizes: 1", 2", 3" and 4", we also manufacture models according to your requirements and needs. The performance may also differ depending on temperature, soil type and also upon the operator. In ideal circumstances, our screens can sift up to 120 tons per hour.

Productivity

The performance of our screening buckets varies according to several factors: the size of the mesh, soil type, temperature, and also the operator. The table to the left shows the possible yield of different models in ideal conditions.

Multipurpose

Our screen buckets are fitted with an interchangeable mesh that is easily switched, therefore time efficient.

Ask for the compatible hitch for loaders and you will be able to use your screening bucket on your loader! We aim to offer a multipurpose product that you can use in many different ways.

Rental

We offer a short or long term rental service for all our screening models to allow you to discover our screening bucket. Contact us for rates, several possibilities are available. See the brochure for more information.

TECHNICAL SPECIFICATIONS
WEIGHT (tonnes) CLASS MODEL CAPACITY (vc) WEIGHT (lb) WIDTH HEIGHT DEPTH SCREEN
3 – 5 35 GT035 0.35 560 32" 30" 46" 24"
5 – 7 50 GT050 0.50 800 36" 35" 50" 28"
7 – 10 75 GT075 1.00 1150 42" 42" 58" 36"
10 – 19 120 GT120 1.50 2500 52" 51" 72" 44"
20 – 29 200 GT200 2.50 3900 60" 60" 80" 52"
30 – 39 300 GT300 3.50 4960 68" 66" 91" 58"
40 – 49 400 GT400 4.50 6800 74" 72" 104" 60"

* Other models and sizes available on request. The quoted weights do not include the quick disconnect fasteners.

Compatibility
  • Bobcat

  • Case

  • Caterpillar

  • Doosan

  • Hitachi

  • Hyundai

  • John Deere

  • Kobelco

  • Komatsu

  • Kubota

  • Liebherr

  • Link-Belt

  • Manitou

  • Mustang

  • New Holland

  • Takeuchi

  • Terex

  • Volvo

  • Yanmar

Options

Interchangeable bolted mesh (0.25 to 6 in.) easy to replace on work site

Other products

You might also be interested in these products.

Delivery

The speed of delivery is our reputation in the field. Depending on customer needs, GRYB will handle the delivery from A to Z including customs clearance from anywhere in the world. With a large volume of delivery, GRYB offers very competitive rates.
