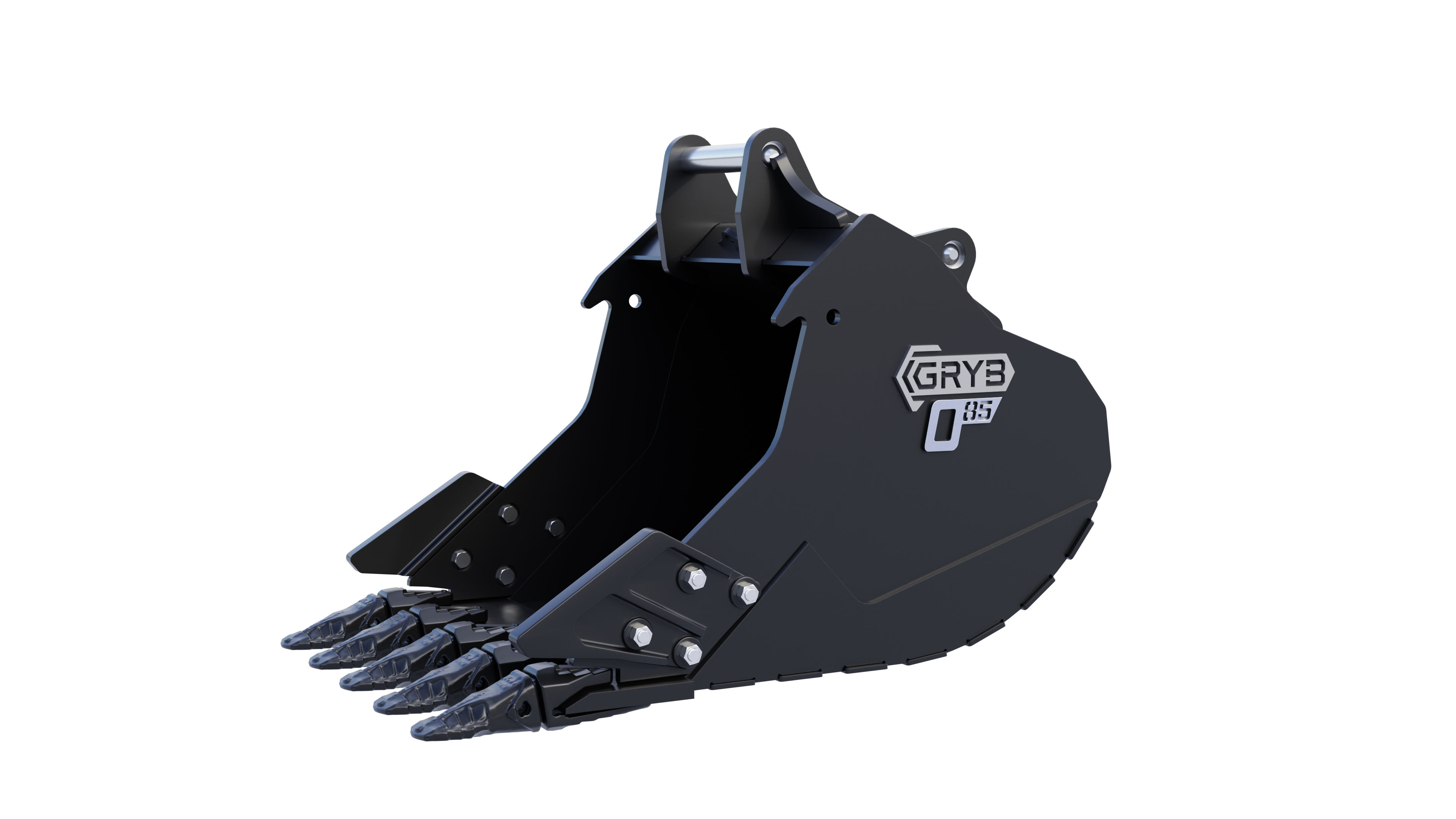

SYMMETRICAL DIGGING BUCKET

product--img

SYMMETRICAL

The GRYB symmetrical digging bucket is a perfect marriage between efficiency and durability. Its optimized design with wear-resistant steel makes it lighter without sacrificing its durability. The bucket profile with a reduced height makes it a great tool to use with a tiltrotator. This symmetrical digging bucket is ready for any digging scenario.

  • Optimized material selection to lower weight without compromising durability.
  • Pre-drilled holes ready for bolt-on side cutters.
  • Back wear plates made of abrasion-resistant AR500 steel.
  • Available in multiple teeth configurations.

Product Specifications

Model

Machine Weight (tons)

Type

Weight (lbs)

Width (in)

Volume (Yd³)

Number of teeth

GED120-30E5-S60 10 to 15 HD 1125 32 0.7 5
GED120-30Z5-S60 10 to 15 SHD 1125 32 0.7 5
GED120-36F5-S60 10 to 15 HD 1225 38 0.85 5
GED120-36F6-S60 10 to 15 HD 1255 38 0.85 6
GED120-36Z5-S60 10 to 15 SHD 1225 38 0.85 5
GED120-36Z6-S60 10 to 15 SHD 1255 38 0.85 6
GED120-40F5-S60 10 to 15 HD 1290 42 1 5
GED120-40F6-S60 10 to 15 HD 1320 42 1 6
GED120-40Z5-S60 10 to 15 SHD 1290 42 1 5
GED120-40Z6-S60 10 to 15 SHD 1320 42 1 6
GED160-36F5-S60 16 to 19 HD 1470 38 0.95 5
GED160-36F6-S60 16 to 19 HD 1500 38 0.95 6
GED160-36Z5-S60 16 to 19 SHD 1470 38 0.95 5
GED160-36Z6-S60 16 to 19 SHD 1500 38 0.95 6
GED160-40G5-S60 16 to 19 HD 1555 42 1.1 5
GED160-40G6-S60 16 to 19 HD 1585 42 1.1 6
GED160-40Z5-S60 16 to 19 SHD 1555 42 1.1 5
GED160-40Z6-S60 16 to 19 SHD 1585 42 1.1 6
GED160-42G5-S60 16 to 19 HD 1600 44 1.15 5
GED160-42G6-S60 16 to 19 HD 1625 44 1.15 6
GED160-42G7-S60 16 to 19 HD 1650 44 1.15 7
GED160-42Z5-S60 16 to 19 SHD 1600 44 1.15 5
GED160-42Z6-S60 16 to 19 SHD 1625 44 1.15 6
GED160-42Z7-S60 16 to 19 SHD 1650 44 1.15 7
GED200-42G5-S70 20 to 23 HD 2055 45 1.3 5
GED200-42G6-S70 20 to 23 HD 2090 45 1.3 6
GED200-42Z5-S70 20 to 23 SHD 2055 45 1.3 5
GED200-42Z6-S70 20 to 23 SHD 2090 45 1.3 6
GED200-48H5-S70 20 to 23 HD 2210 51 1.55 5
GED200-48H6-S70 20 to 23 HD 2245 51 1.55 6
GED200-48Z5-S70 20 to 23 SHD 2210 51 1.55 5
GED200-48Z6-S70 20 to 23 SHD 2245 51 1.55 6
GED270-42G5-S70 24 to 29 HD 2495 45 1.5 5
GED270-42Z5-S70 24 to 29 SHD 2495 45 1.5 5
GED270-48H5-S70 24 to 29 HD 2675 51 1.75 5
GED270-48H6-S70 24 to 29 HD 2725 51 1.75 6
GED270-48Z5-S70 24 to 29 SHD 2675 51 1.75 5
GED270-48Z6-S70 24 to 29 SHD 2725 51 1.75 6
GED270-54H6-S70 24 to 29 HD 2900 57 2 6
GED270-54H7-S70 24 to 29 HD 2955 57 2 7
GED270-54Z6-S70 24 to 29 SHD 2900 57 2 6
GED270-54Z7-S70 24 to 29 SHD 2955 57 2 7

All types of excavators

  • Only available with symmetrical lugs.

  • HD or SHD configurations
  • Standard teeth, wide teeth or no teeth.
  • Bolt-on side cutters are available.
