SYMMETRICAL TRENCHING BUCKET
SYMMETRICAL
When digging narrow cable trenches, pipe culverts, or drains, GRYB’s symmetrical trenching buckets make the job easier. The extended front section delivers extra precision when using a tiltrotator. The symmetrical trenching bucket’s narrow shape and cutting edge enable the bucket to dig deep trenches and work more easily underneath pipes or cables.
- Dig deep trenches without the tiltrotator having to go below the surface level.
- Optimized material selection to lower weight without compromising on durability.
- Back wear plates made of abrasion-resistant AR500 steel.
Product Specifications
|
Model |
Machine Weight (tons) |
WEIGHT (lbs) |
Width (in) |
Volume (Yd³) |
Number of teeth |
|---|---|---|---|---|---|
| GET035-12C0-S40 | 2,3 to 3,9 | 165 | 12 | 0.1 | 0 |
| GET035-12C3-S40 | 2,3 to 3,9 | 195 | 12 | 0.1 | 3 |
| GET050-14C0-S40 | 4 to 5,9 | 220 | 14 | 0.16 | 0 |
| GET050-14C3-S40 | 4 to 5,9 | 250 | 14 | 0.16 | 3 |
| GET075-14C0-S45 | 6 to 9,9 | 390 | 14 | 0.21 | 0 |
| GET075-14C3-S45 | 6 to 9,9 | 425 | 14 | 0.21 | 3 |
| GET075-16C0-S45 | 6 to 9,9 | 410 | 16 | 0.22 | 0 |
| GET075-16C3-S45 | 6 to 9,9 | 445 | 16 | 0.22 | 3 |
| GET120-16D0-S60 | 10 to 15 | 680 | 16 | 0.35 | 0 |
| GET120-16D3-S60 | 10 to 15 | 760 | 16 | 0.35 | 3 |
| GET120-20D0-S60 | 10 to 15 | 720 | 20 | 0.42 | 0 |
| GET120-20D3-S60 | 10 to 15 | 805 | 20 | 0.42 | 3 |
| GET160-18D0-S60 | 16 to 19 | 880 | 18 | 0.46 | 0 |
| GET160-18D3-S60 | 16 to 19 | 950 | 18 | 0.46 | 3 |
| GET200-24E0-S70 | 20 to 23 | 1295 | 24 | 0.65 | 0 |
| GET200-24E3-S70 | 20 to 23 | 1400 | 24 | 0.65 | 3 |
| GET270-26F0-S70 | 24 to 29 | 1625 | 26 | 0.85 | 0 |
| GET270-26F3-S70 | 24 to 29 | 1750 | 26 | 0.85 | 3 |
All types of backhoes.
- Only available with symmetrical lugs.
- Standard teeth, wide teeth or without teeth.
Video
Might also like
Grading Buckets For Rear Backhoe
Demolition , Construction , Landscaping , Roads and highways
PIN GRABBER QUICK COUPLER
Demolition , Construction , Landscaping , Roads and highways

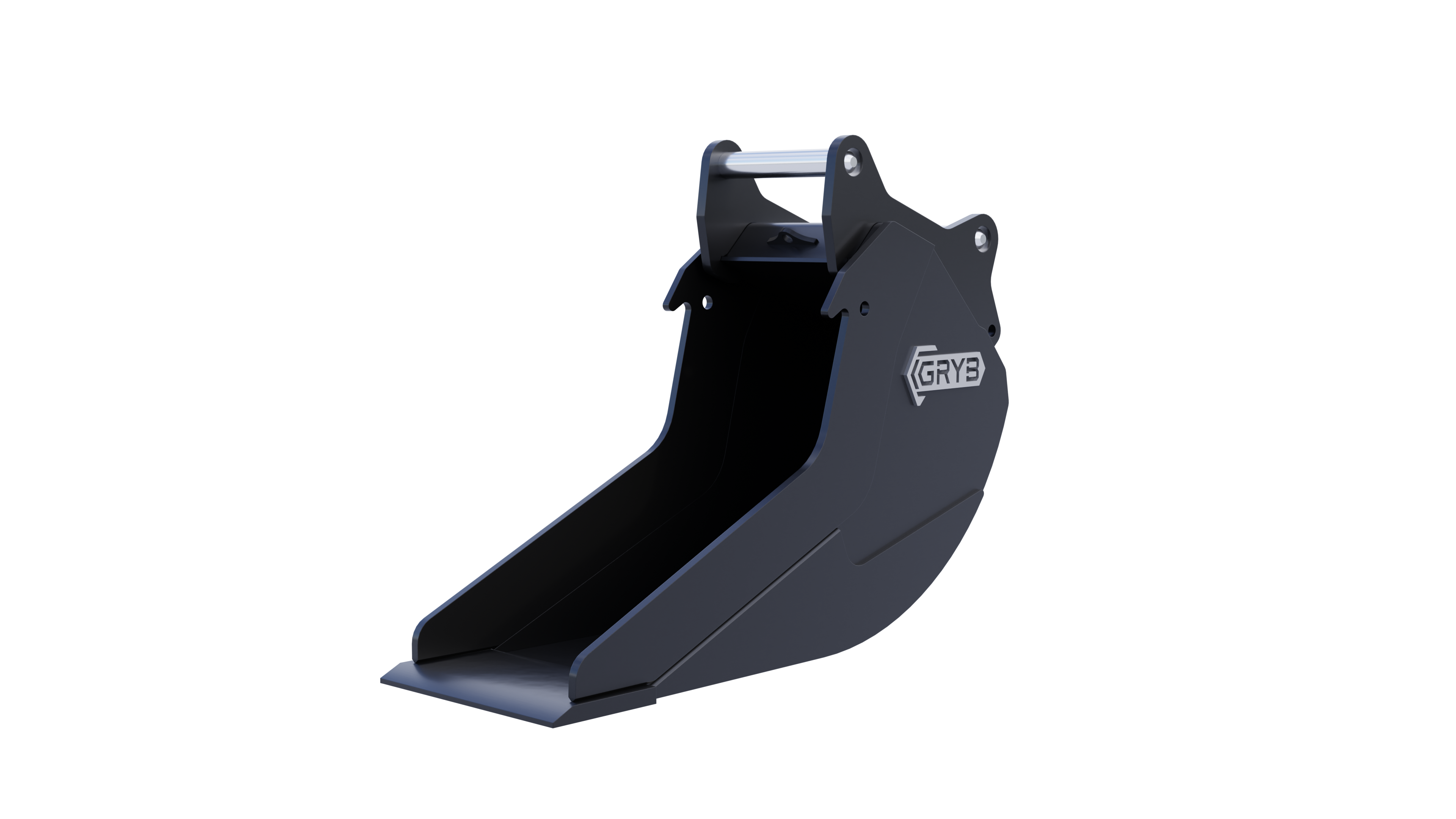

DITCHING BUCKET
