Tiltrotators For Rear Backhoes
Rear Backhoe Tiltrotators

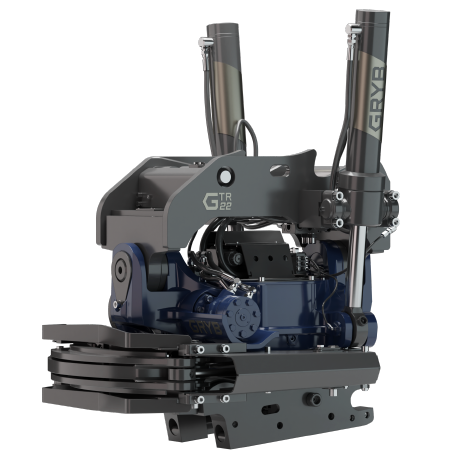

The GRYB tiltrotator is an extension of the arm, and it allows you to tilt and/or rotate any bucket/attachment you connect to it. The perfect attachment for you rear backhoe! It features a grease-lubricated gear case, constant 360° rotation, and 40° tilt in all directions. The tiltrotator can be mounted on the quick coupler or directly on the excavator's arm. The ease of maneuvering the tiltrotator using a joystick and rocker switch allows the operator to easily and efficiently perform advanced and precision work without having to move the machine. It also makes the work environment safer, both for the operator and for people working near the machine. The GTR tiltrotator is equipped with double-acting cylinders for tilting.
- Tilting 2 x 45°
- Infinite rotation 360˚
- Integrated Grip Module
- Grease-filled gear housing
- 12/24V DC - Hardlock® coupler
- Load holding cylinders
- Rotation and tilt sensors
- Robust critical components
Product Specifications
|

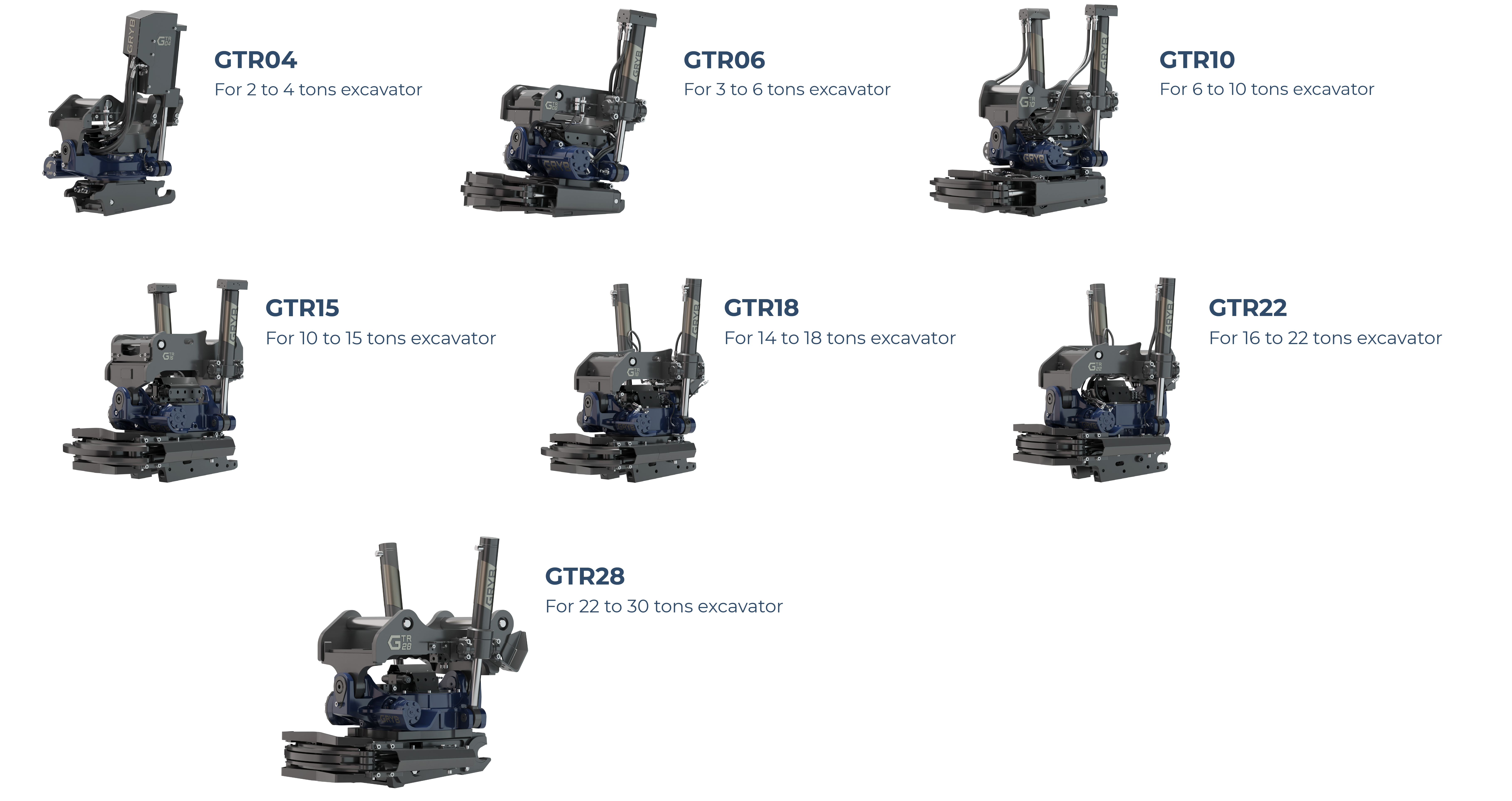

Model |
Machine Weight (tons) |
Approx weight (lbs) |
Dimensions A / B / C / D | Recommended max oil flow (GPM) | Working pressure max (psi) | Tilt torque at 3'000PSI / 21 Mpa (lb/ft) | Rotation speed (sec/rotation) | Turn torque (lb/ft) | Max breakout torque (lb/ft) | Max breakout force (lb) | Max bucket width (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GTR-04 | 2 to 4 | 216 | 28 / 18 / 13 / 17 | 16 | 3,046 | 2,876 | 7 | 2,212 | 8,992 | 42 | |
| GTR-06 | 3 to 6 | 331 | 28 / 19 / 14 / 16 | 21 | 3,046 | 9,072 | 7 | 3,687 | 32,452 | 11,240 | 52 |
| GTR-10 | 6 to 10 | 518 | 34 / 23 / 17 / 24 | 26 | 3,046 | 18,660 | 7 | 3,687 | 55,317 | 15,736 | 56 |
| GTR-15 | 10 to 15 | 816 | 36 / 29 / 18 / 26 | 26 | 3,046 | 25,151 | 7 | 5,162 | 105,471 | 24,729 | 60 |
| GTR-18 | 14 to 18 | 1,080 | 36 / 30 / 20 / 32 | 32 | 3,046 | 33,928 | 7 | 4,425 | 136,449 | 29,225 | 72 |
| GTR-22 | 16 to 22 | 1,3674 | 39 / 33 / 24 / 33 | 32 | 3,046 | 38,353 | 7 | 5,162 | 169,639 | 33,721 | 80 |
| GTR-28 | 22 to 30 | 1,653 | 43 / 40 / 26 / 34 | 32 | 3,046 | 39,091 | 7 | 5,162 | 228,644 | 40,465 | 80 |
Backhoes from 3 to 30 tons.
- Fast change coupler system available on S60 and S70 attachments.
- Direct mount or machine coupler
- An integrated grip module is available on all models.
- 3D grade control
- Wheel/track steering
