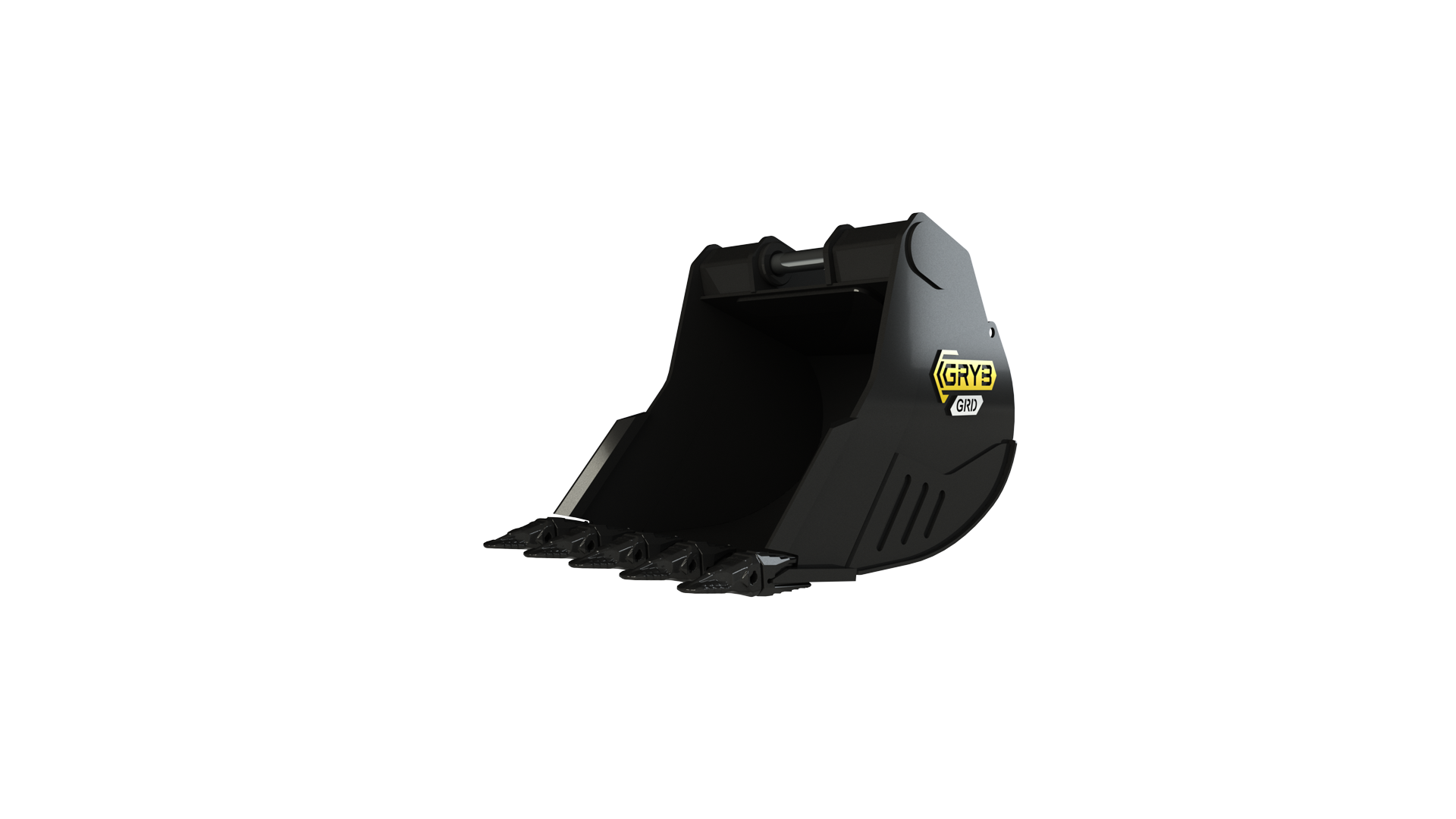

RECESSED BUCKET
The GRYB recessed bucket is designed specifically for use with a pin grabber. With its recessed pins and heavy-duty design, our recessed bucket is made with digging force in mind. The geometry allows the same breakout force as an OEM bucket.
- Provides the same digging power as the original bucket.
- Reduces the risk of the bucket possibly domaging the excavator.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (in) |
Capacity (yd3) |
Number of teeth |
|---|---|---|---|---|---|
| GRD120-30E4 | 10 to 15 | 1160 | 30" | 0.7 | 4 |
| GRD120-36F5 | 10 to 15 | 1190 | 36" | 0.85 | 5 |
| GRD120-42F5 | 10 to 15 | 1390 | 42" | 1 | 5 |
| GRD160-30E5 | 16 to 19 | 1450 | 30" | 0.75 | 4 |
| GRD160-36F5 | 16 to 19 | 1500 | 36" | 0.95 | 5 |
| GRD160-42G5 | 16 to 19 | 1690 | 42" | 1.1 | 5 |
| GRD200-36G5 | 20 to 23 | 1860 | 36" | 1.05 | 5 |
| GRD200-42G5 | 20 to 23 | 2140 | 42" | 1.3 | 5 |
| GRD200-48G5 | 20 to 23 | 2150 | 48" | 1.55 | 5 |
| GRD270-42G5 | 24 to 29 | 2500 | 42" | 1.5 | 5 |
| GRD270-48H5 | 24 to 29 | 2785 | 48" | 1.75 | 5 |
| GRD270-54H6 | 24 to 29 | 3000 | 54" | 2 | 6 |
| GRD300-42H4 | 30 to 39 | 3460 | 42" | 1.65 | 4 |
| GRD300-48H5 | 30 to 39 | 3500 | 48" | 2 | 5 |
| GRD300-54I5 | 30 to 39 | 3910 | 54" | 2.2 | 5 |
All types of excavators
- Welded pins, can only be used with a pin grabber.
