Tiltrotators For Excavators

product--img

GTR Tiltrotators

The GRYB Tiltrotator is an extension of the arm, allowing you to tilt and/or rotate any bucket/attachment you connect to it. It features a grease-lubricated gear case, constant 360° rotation, and 40° tilt in all directions. The tiltrotator can be mounted on the quick coupler or directly on the excavator's arm. The ease of maneuvering the tiltrotator using a joystick and rocker switch allows the operator to easily and efficiently perform advanced and precision work without having to move the machine. It also makes the work environment safer, both for the operator and for people working near the machine. The GTR Tiltrotator is equipped with double-acting cylinders for tilting.

  • Tilting 2 x 45°
  • Infinite rotation 360˚
  • Integrated Grip Module
  • Grease-filled gear housing
  • 12/24V DC - Hardlock® coupler
  • Load holding cylinders
  • Rotation and tilt sensors
  • Robust critical components

Product Specifications

Model

Machine Weight (tons)

Approx weight (lbs)

Dimensions A / B / C / D (inches)

Recommended max oil flow (GPM)

Working pressure max (psi)

Tilt torque at 3'000PSI / 21 Mpa (lb/ft) Rotation speed (sec/rotation) Turn torque (lbs/ft) Max breakout torque (lbs/ft) Max breakout force (lbs) Max bucket width (in)

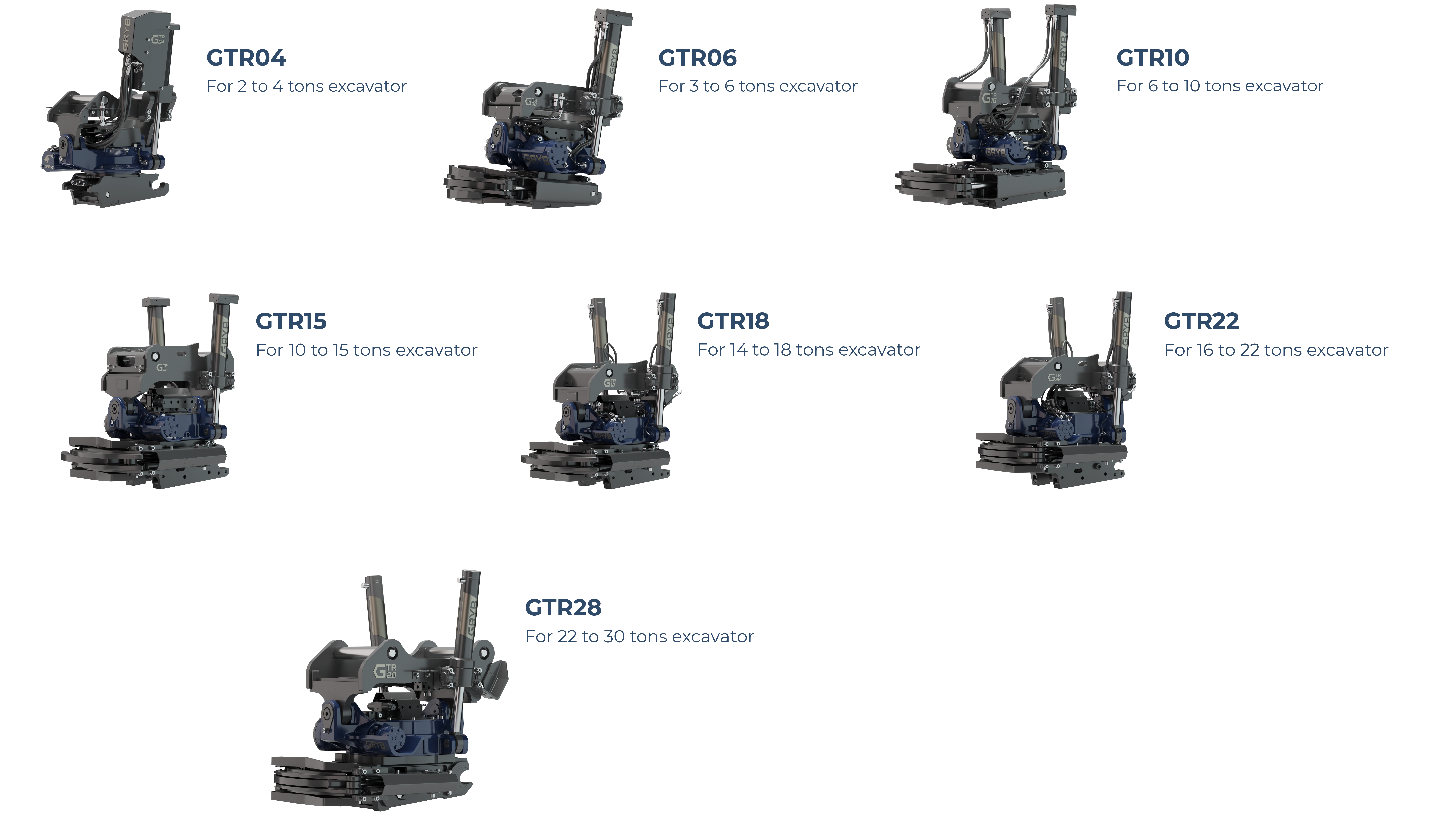

GTR-04 2 to 4 216 28 / 18 / 13 / 17 16 3046 2876 7 2212 -- 8992 42
GTR-06 3 to 6 330 28 / 19 / 14 / 16 21 3046 9072 7 3687 32453 11241 52
GTR-10 6 to 10 518 34 / 23 / 17 / 24 26 3046 18660 7 3687 55317 15737 56
GTR-15 10 to 15 816 36 / 29 / 18 / 26 26 3046 25151 7 5162 105,471 24729 60
GTR-18 14 to 18 1080 36 / 30 / 20 / 32 32 3046 33928 7 4425 136 29225 72
GTR-22 16 to 22 1080 39 / 33 / 24 / 33 32 3046 38353 7 5162 170 33722 80
GTR-28 22 to 30 1,653 43 / 40 / 26 / 34 32 3046 39091 7 5,162 228,644 40,465 79

Tiltrotators fitted to crawler and excavators from 10 to 30 tons.

  • Fast change coupler system available on S60 and S70 attachment.
  • Direct mount or machine coupler.
  • An integrated grip module is available on all models.
  • 3D grade control
  • Wheel/track steering
